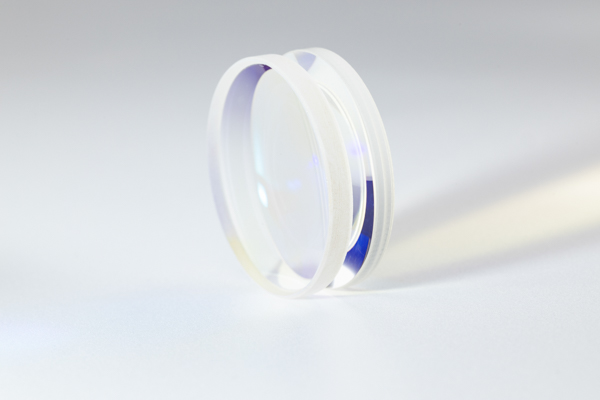

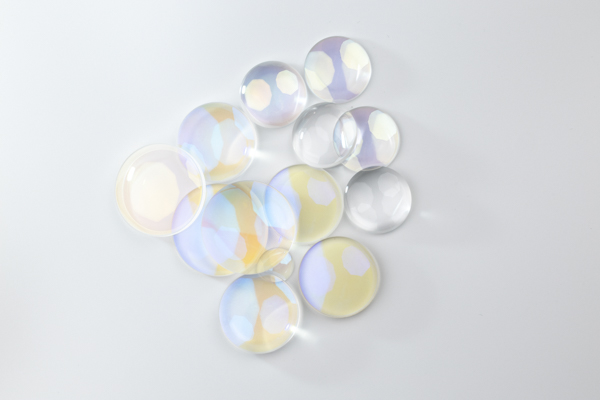

Collimation Lens (spherical lens) is a common optical lens with a spherical curvature shape and a convex or concave surface. Concave lenses can diverge parallel light rays, so they are often used to disperse light.
| Brand | Model | Power | Collimater lens | Focus lens |
| Raytools | BT210S FC | 1500W | D28F100 | D28F125 |
| Raytools | BT240S | 3300W | D30F100 | D30F125/F155/F200 |
| Raytools | BM109FC | 1500W | D28F100 | D28F125/F150 |
| Raytools | BM111FC | 3300W | D30F100 | D30F125/F155/F200 |
| Raytools | BM114S | 4-6KW | D37F100 | D37F150/F200 |
| Raytools | BM115 | 6-8-12KW | D38.1F100 | D38.1F150/F200 |
| Raytools | BM116 | 6-8-12KW | D50F100 | D50F150/F200 |
| WSX | MN15 | 1000W | D30F75/100 | D30F125 |
| WSX | KC13 | 2000W | D30F75/100 | D30F125/150 |
| WSX | KC15 | 2000W | D30F75/100 | D30F125/150 |
| WSX | NC12 | 1000W | D30F75/100 | D30F125/150 |
| WSX | NC30 | 3000W | D30F75/100 | D30F125/150 |
| WSX | NC60 | 6000W | D37/F100 | D37F150F190 |
| Precitec | minicutter | 2000W | D30F100 | D30F200 |
| Precitec | lightcutter | 4000W | D30F75/100 | D30F125/150/200 |
| Precitec | lightcutter2.0 | 6000W | D30F75/100 | D30F125/150/200 |
| Precitec | procutter zoom | 12KW | D37F100 | D37F200 |
etc...
