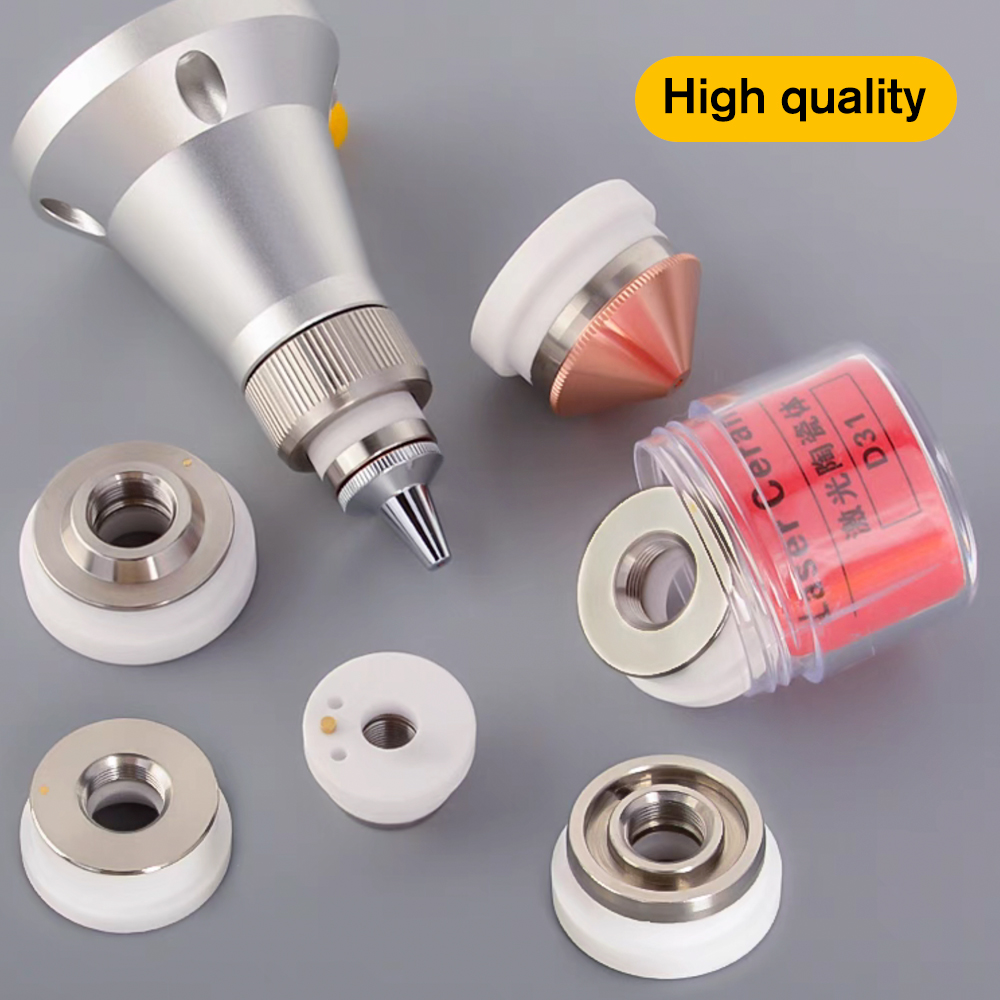

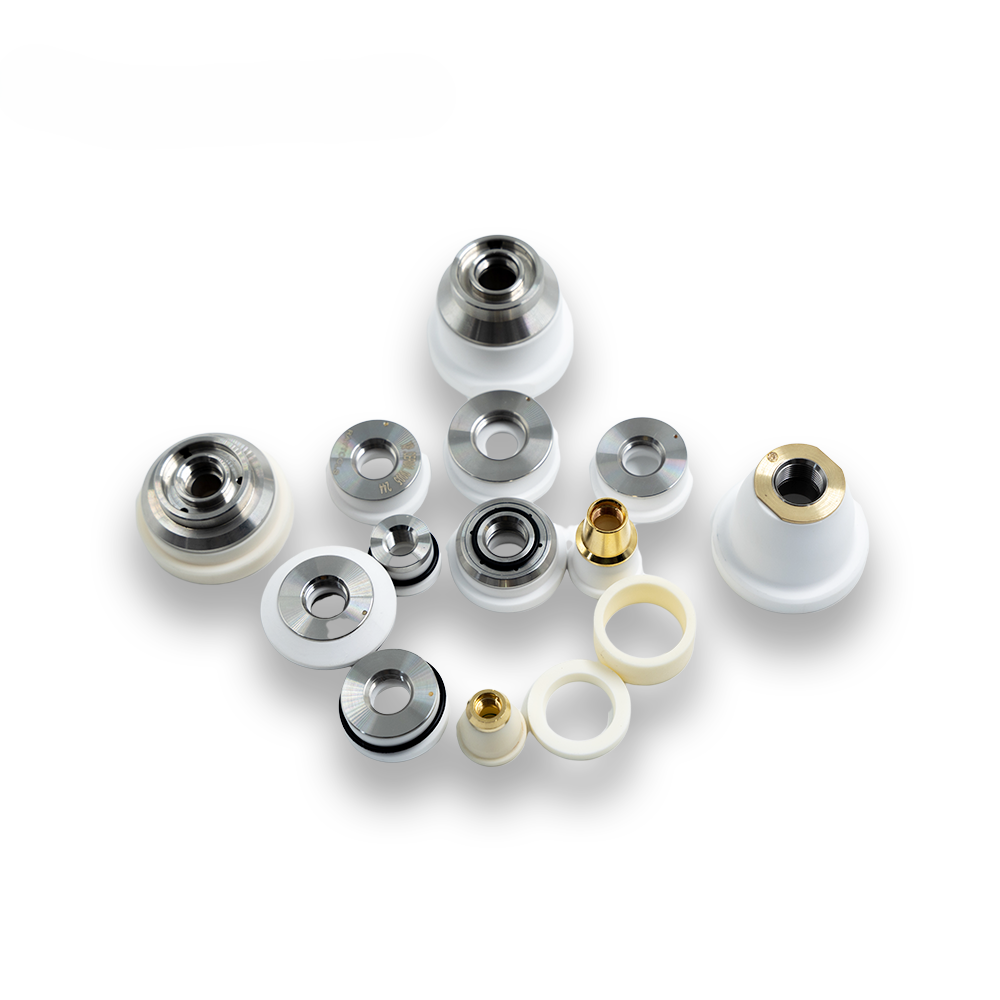

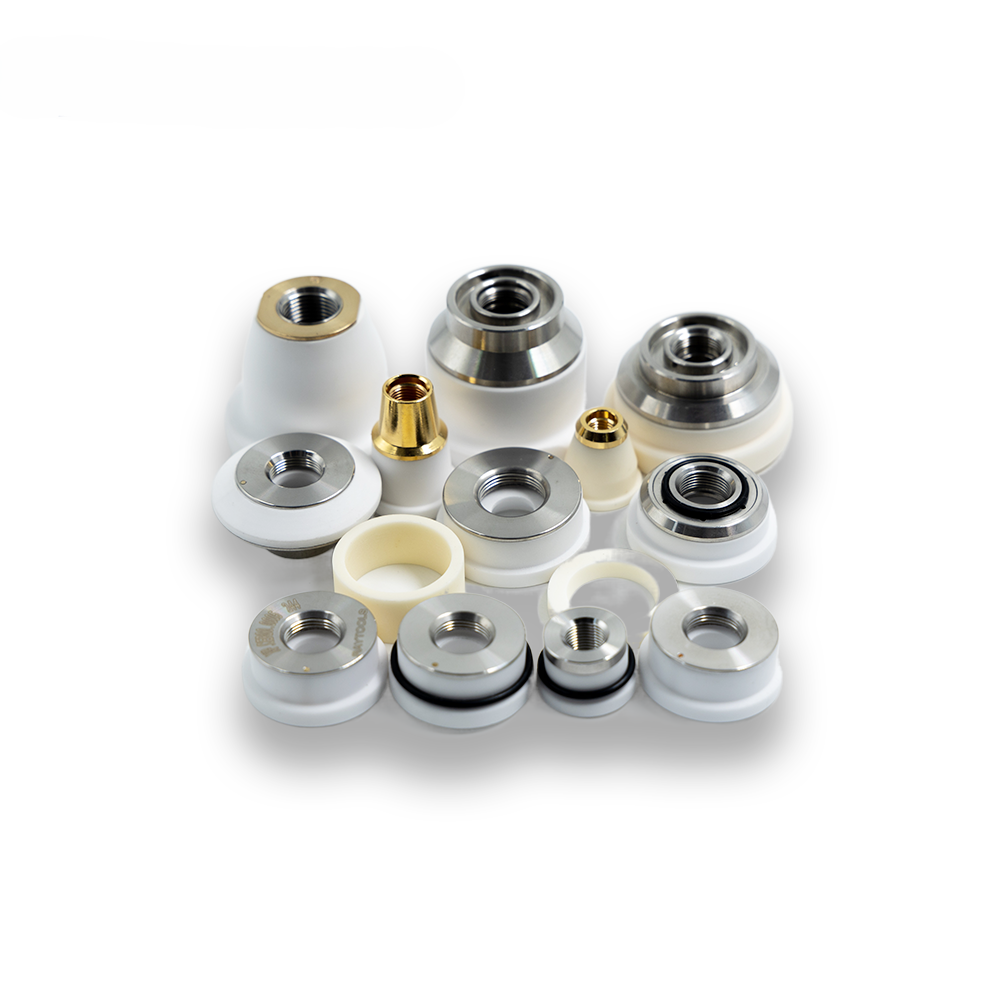

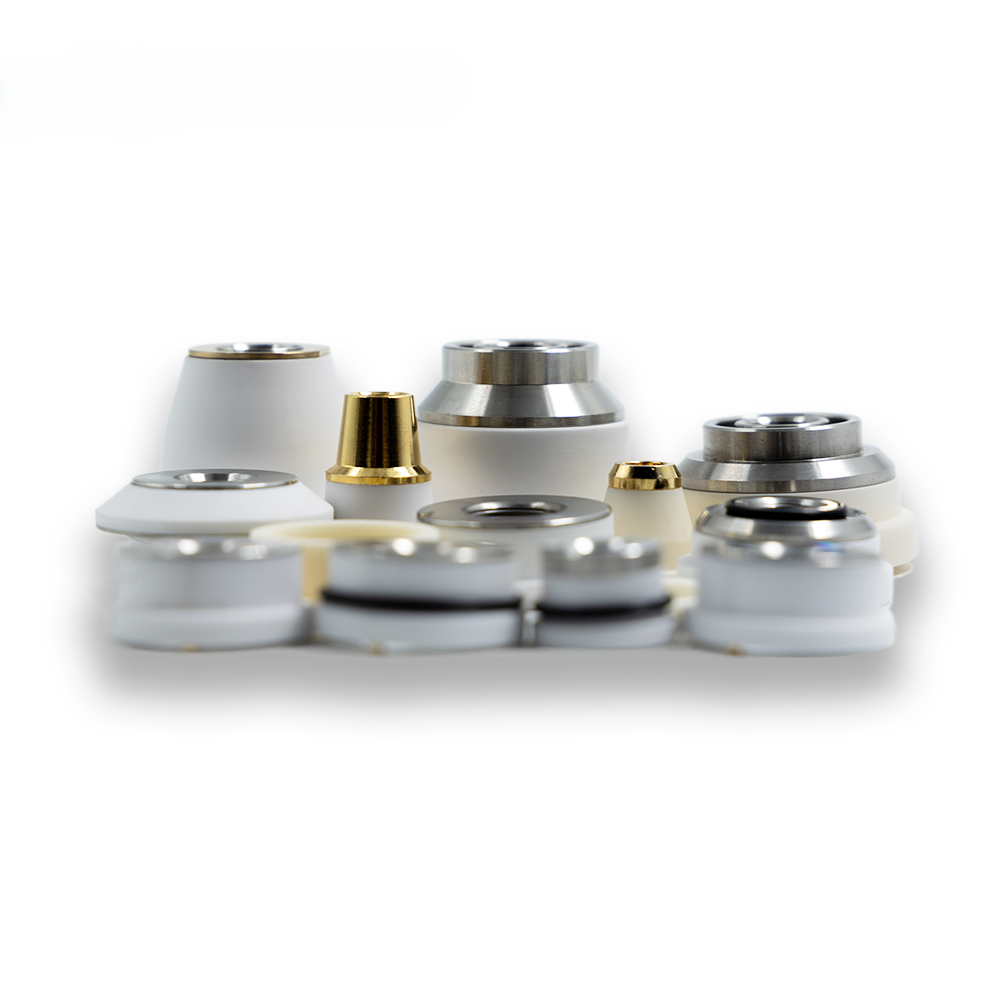

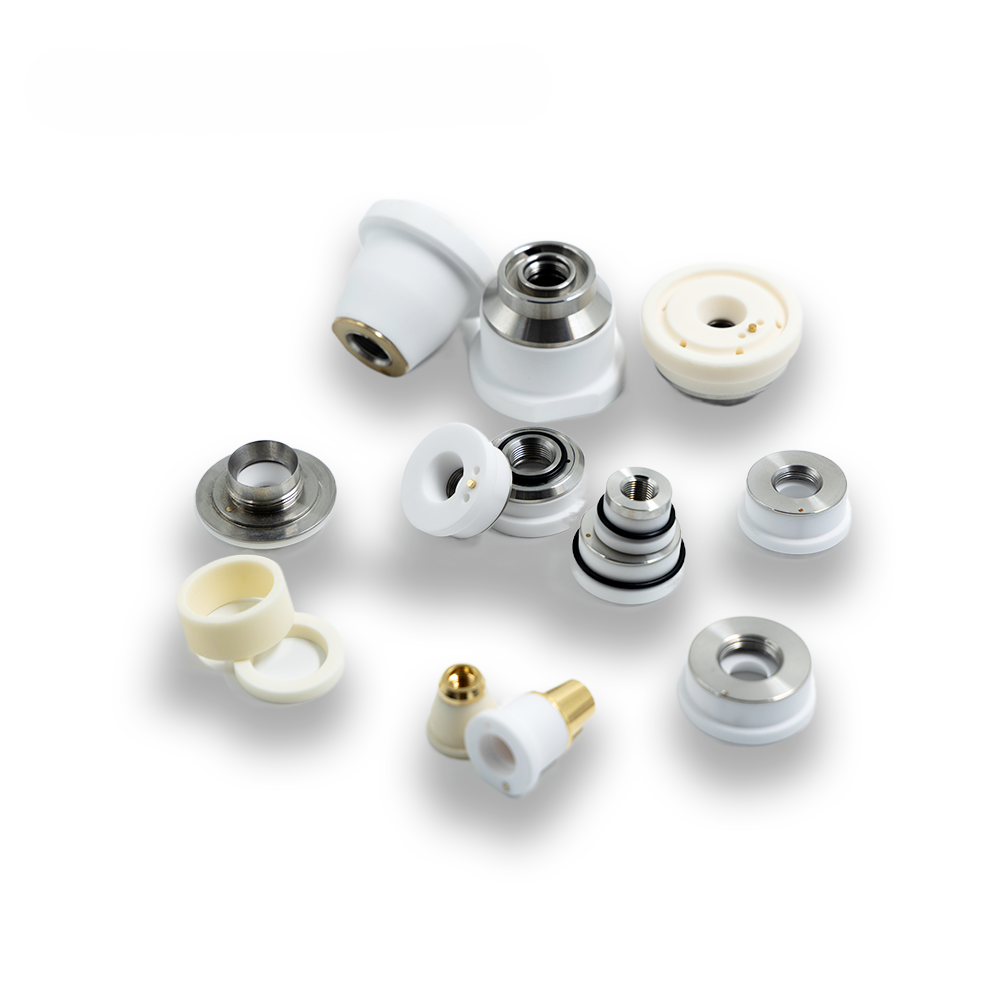

High-quality rings feature durable zirconium oxide or aluminum oxide ceramics to withstand heat and impacts, along with stainless fittings and gold-plated copper pins for reliable signal transfer. Select rings use conductive silver adhesive for robust, stable connections, preventing signal loss that can cause unexpected machine stops and crashes. Precision fitted parts also allow easy nozzle changes without requiring machine recalibration. For peak fiber laser performance, trust certified fiber laser ceramic rings to maintain insulation and signal integrity.
| Suitable | Product Description | Outer Diameter (mm) | Height (mm) | Thread Type |
|---|---|---|---|---|
| RayTools, WSX, Ospri | WSX 3D Ceramic | 17.8 | 11 | M8 |
| MaxPhotonics | MaxPhotonics Ceramic | 28 | 12 | M11 |
| BOCI, WSX | BOCI BLT4XX BLT6XX Ceramic | 41 | 34 | M11 |
| Precitec, Ophit | D31 Ceramic | 31 | 13.5 | M11 |
| RayTools, WSX, Ospri | 3D/Tube Cutting Ceramic | 19.5 | 12.5 | M8 |
| RayTools | D32 Ceramic | 32 | 12 | M14 |
| Precitec, WSX, RayTools, Ospri | D28 Ceramic | 28 | 12 | M11 |
| Precitec | D28 Precitec (Original) Ceramic | 28 | 12 | M11 |

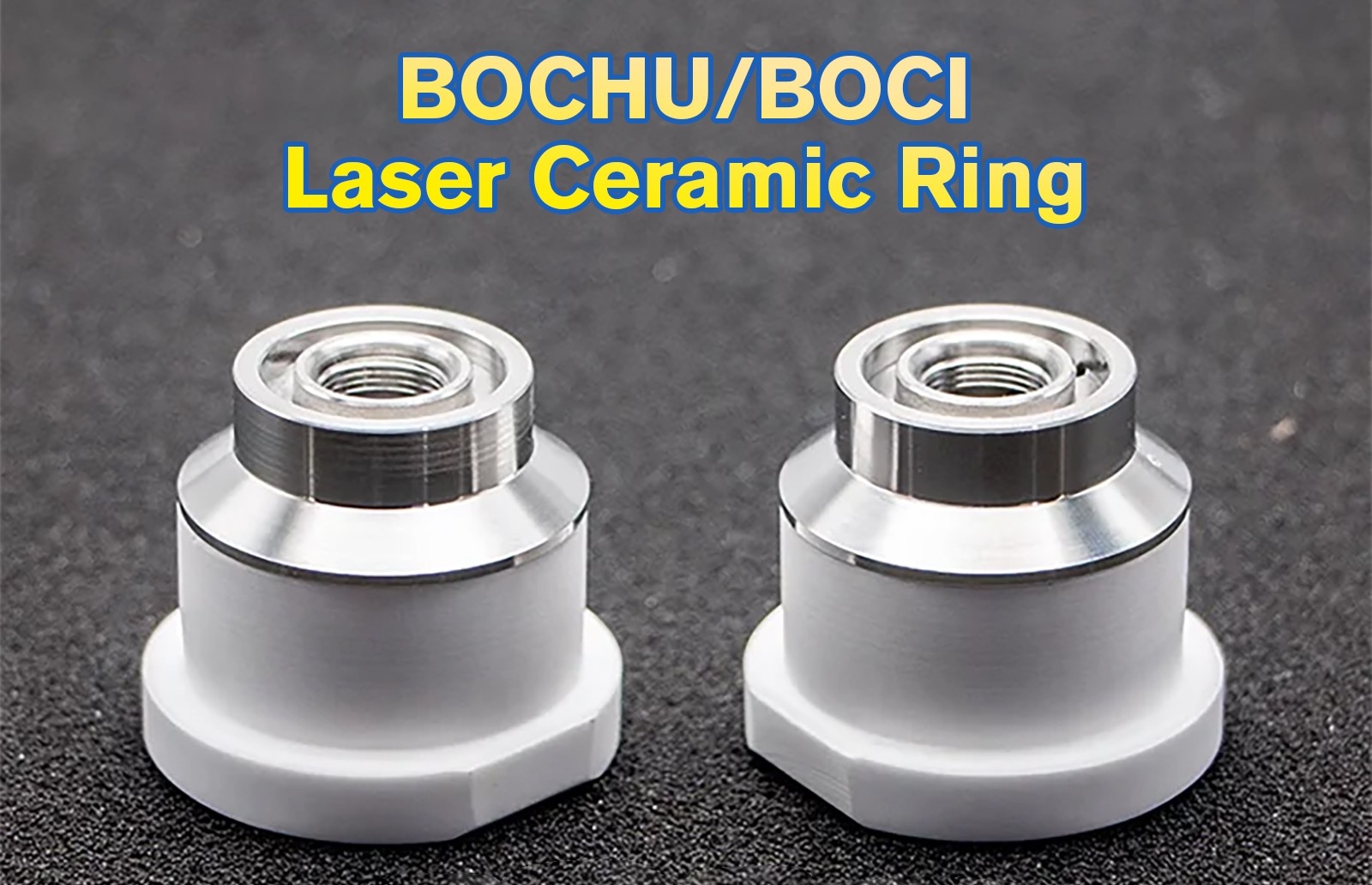

| BOCI | BOCI M8*0.75 | 20 | 28 | M8 |
