VNITEC supplies fiber laser cutting machines sourced from certified manufacturing partners and rigorously evaluated against our quality standards before delivery. As your dedicated partner, we provide full support from machine selection and configuration through to installation, training, and after-sales service. With VNITEC, you get reliable equipment and a team that stands behind it.
  • Category :
    Machine
  • Browse number : ...
  • Release time : 2026-07-16
Message
  • Detailed Description

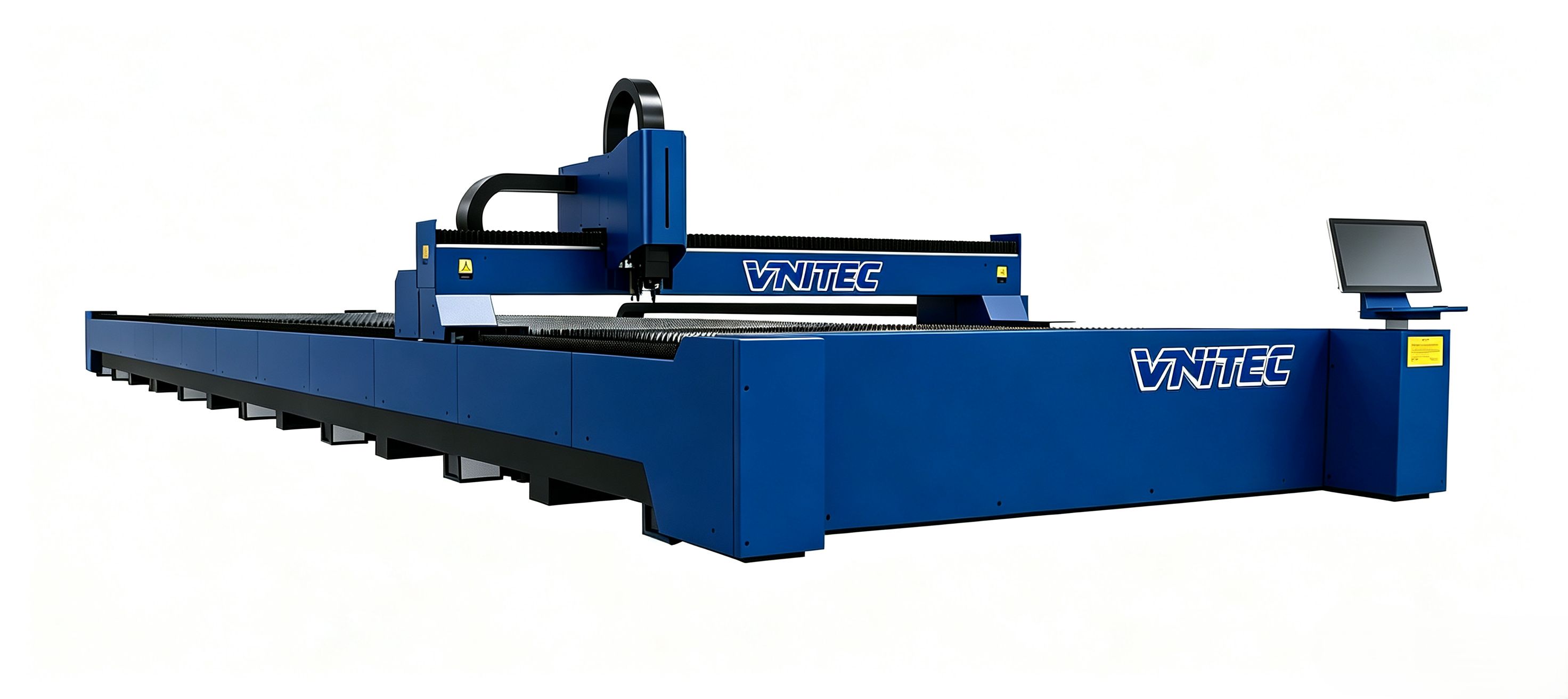

Single Table:

MODEL MS-F4020 MS-F6025 MS-F8025 MS-F12025
Laser power 1500W-30000W
Processing width (length*width) 4000mm×2000mm 6000mm×2500mm 8000mm×2500mm 12000mm×2500mm
X/Y axis positioning accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
X/Y axis repeat positioning accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
Maximum positioning speed 100m/min 100m/min 100m/min 100m/min
Max acceleration 1G 1G 1G 1G
Maximum load of the table 1800KG 2900KG 7500KG 11000KG
Dimensions (L*W*H) 6500*3200*2000 8500*3200*2000 10500*3200*2000 14500*3200*2000

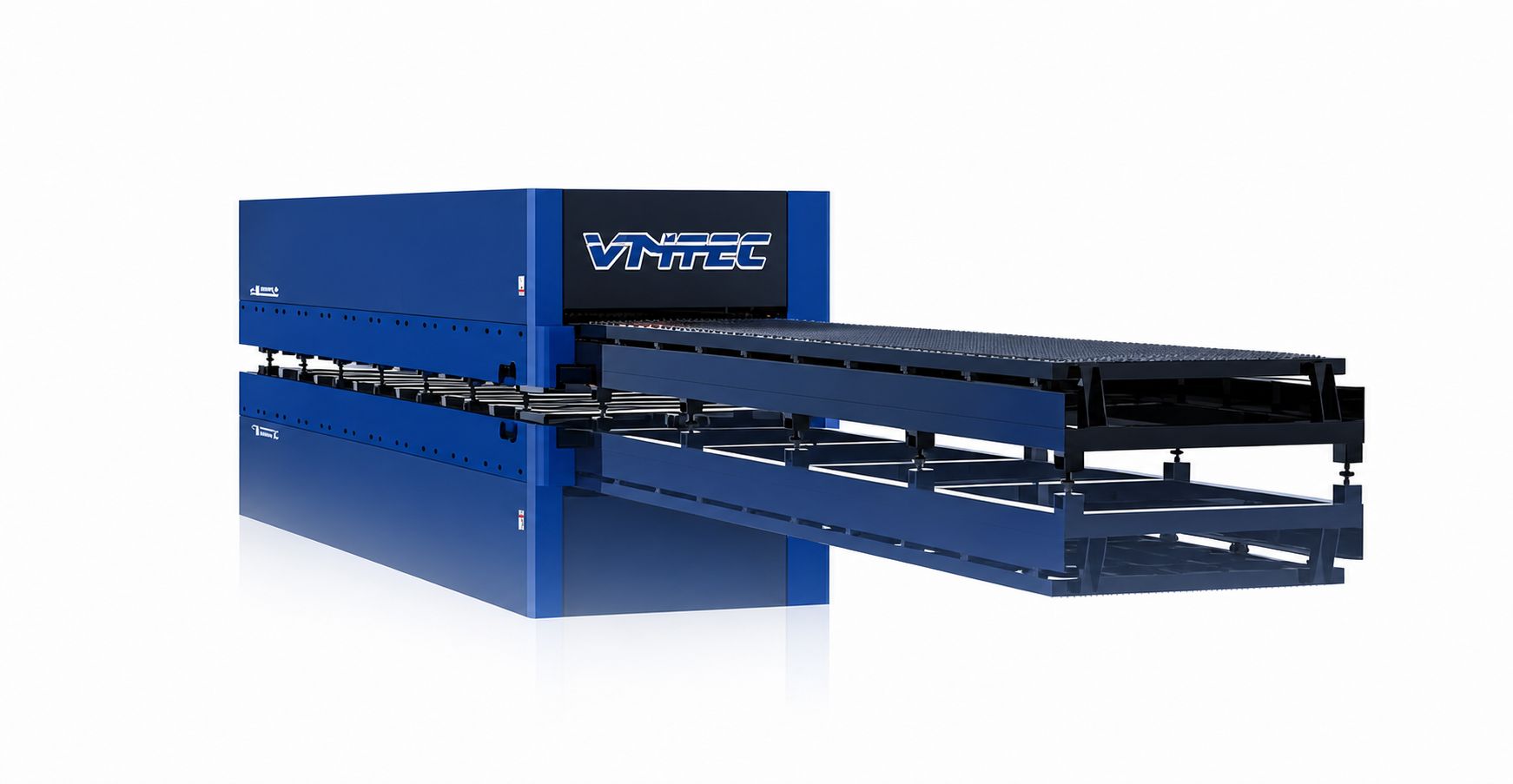

Exchange Table:

MODEL MS-4020D MS-6025D MS-8025D MS-12025D
Laser power 1500W-30000W
Processing area (length*width) 4000mm×2000mm 6000mm×2500mm 8000mm×2500mm 12000mm×2500mm
X/Y axis positioning accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
X/Y axis repeat positioning accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
Acceleration 100m/min 100m/min 100m/min 100m/min
Max acceleration 1 1 1 1
Maximum load of table 1800KG 2900KG 7500KG 11000KG
Dimensions (L*W*H) 9900*3550*2400 15000*4050*2400 18500*4050*2400 28500*4050*2400

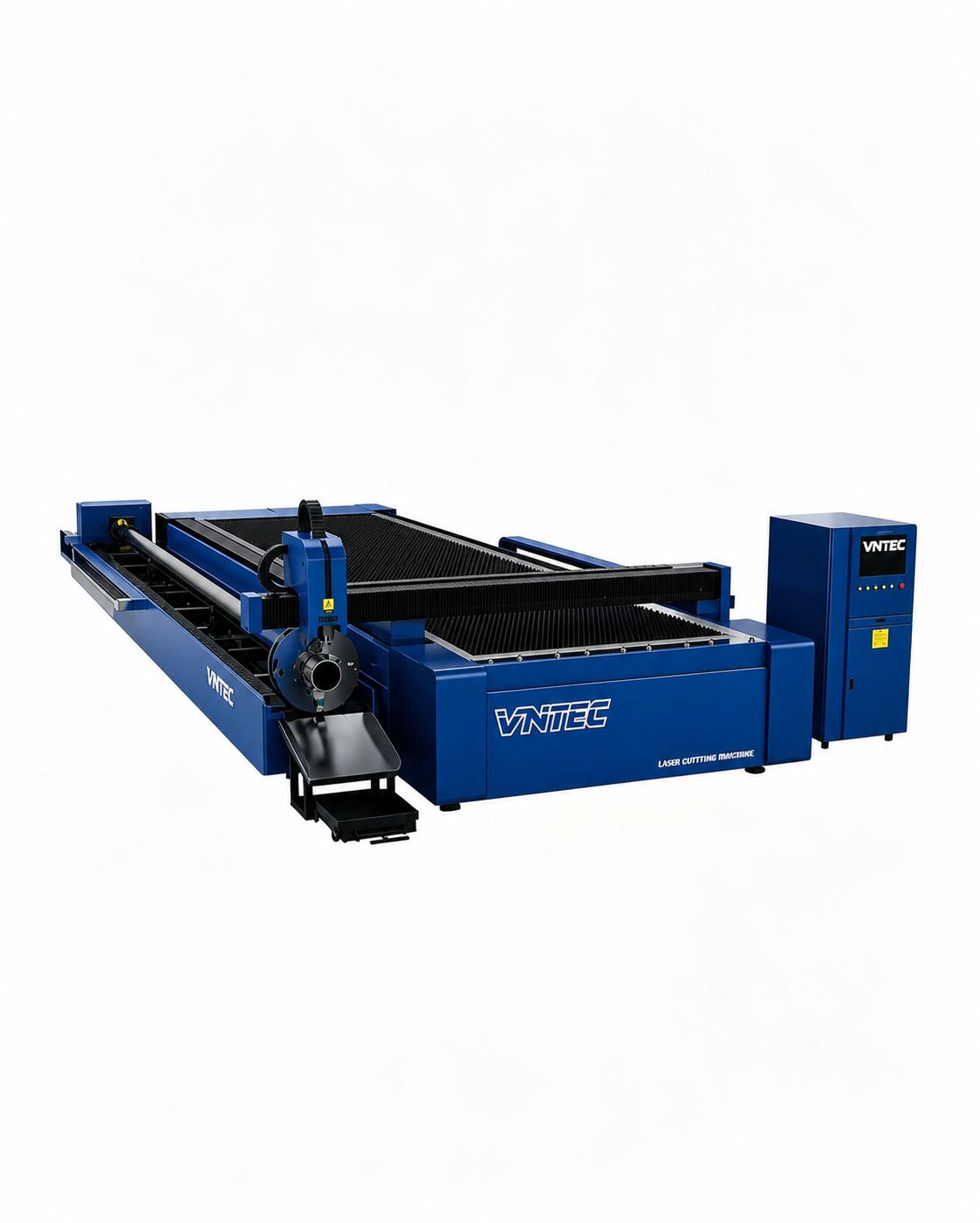

Plate & Tube:

MODEL MS-4020D MS-6025D MS-8025D MS-12025D
Laser power 1500W-30000W
Processing area (length*width) 4000mm×2000mm 6000mm×2500mm 8000mm×2500mm 12000mm×2500mm
X/Y axis positioning accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
X/Y axis repeat positioning accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
Acceleration 100m/min 100m/min 100m/min 100m/min
Max acceleration 1 1 1 1
Maximum load of table 1800KG 2900KG 7500KG 11000KG
Dimensions (L*W*H) 9900*3550*2400 15000*4050*2400 18500*4050*2400 28500*4050*2400



Tube:

MODEL MS-T6016 MS-T6022 MS-T6035 non-standard customization
Laser power 1500W-12000W
Processing range 15mm-Φ165mm/□165mm 15mm-Φ220mm/□220mm 15mm-Φ350mm/□350mm 15mm-Φ550mm/□550mm
X/Y axis positioning accuracy ±0.05mm/m ±0.05mm/m ±0.05mm/m ±0.05mm/m
X/Y axis repeat positioning accuracy ±0.03mm/m ±0.03mm/m ±0.03mm/m ±0.03mm/m
Maximum running speed 60m/min 60m/min 60m/min 60m/min
Pipe tailings ≤150mm ≤150mm ≤150mm With avoidance ≤80mm
No avoidance ≤150mm
Single tube load-bearing ≤200KG ≤300KG ≤400KG Customization
Land occupation size 12000mm*3000mm 12000mm*3000mm 12000mm*3000mm Customization
