Press Brake

VNITEC's press brake range is sourced from a specialized manufacturer whose core engineering team brings extensive experience from within China's leading bending machine industry. That depth of expertise is reflected in every machine — from the rigidity of the frame to the precision of the CNC back gauge and drive system.
Each press brake is evaluated against our quality standards before delivery, covering structural performance, bending accuracy, and long-term reliability.

Category :
Machine
Browse number : ...
Release time : 2026-07-16

Message

Detailed Description

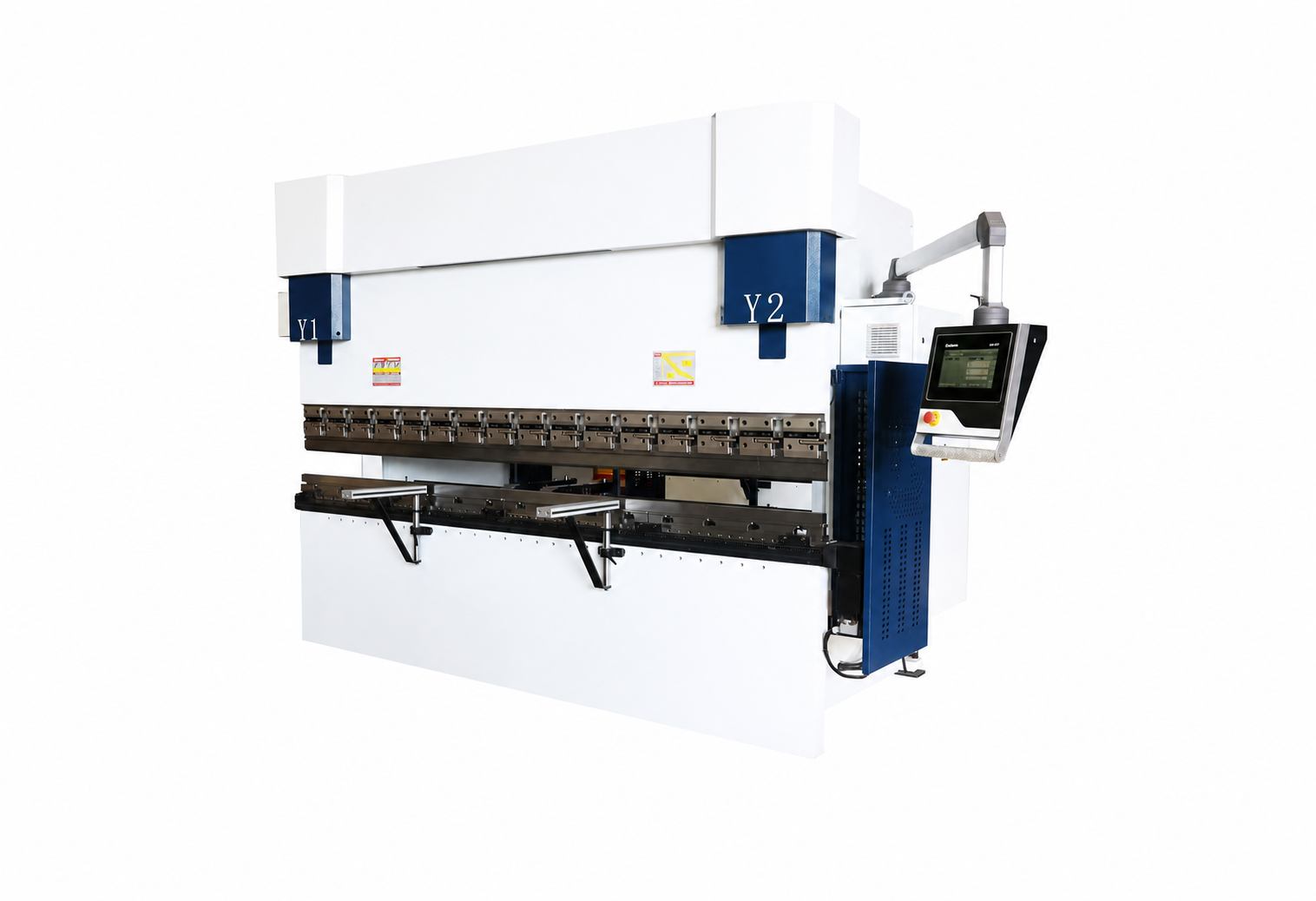

CNC Hydraulic Plate Bending Machine:

Category	Parameter	Unit	63T			100T		150T		220T		320T
Category	Parameter	Unit	63/1500	63/2100	63/2550	100/3200	100/4100	150/3200	150/4100	220/3200	220/4100	320/3200	320/4100
	Nominal force	KN	630	630	630	1000	1000	1500	1500	2200	2200	3200	3200
	Bending length	mm	1500	2100	2550	3200	4100	3200	4100	3200	4100	3200	4100
	Column spacing	mm	1200	1600	2050	2700	3600	2700	3600	2700	3600	2700	3600
	Closed height	mm	580	580	580	580	580	580	580	580	580	680	680
	Depth of throat opening	mm	350	350	350	390	390	405	405	405	405	405	405
	Main motor power	Kw	8.7	8.7	8.7	10.8	10.8	13.2	13.2	16.7	16.7	21.3	21.3
	Fuel tank volume	L	130	170	220	300	400	300	400	300	400	360	480
Stroke of each axis	Cylinder stroke	mm	215	215	215	215	215	215	215	215	215	315	315
	X-axis travel	mm	500	500	500	500	500	500	500	500	500	500	500
	R-axis travel	mm	200	200	200	200	200	200	200	200	200	200	200
	Z-axis travel	mm	350	750	1200	1850	2700	1850	2700	1850	2700	1850	2700
Efficiency value	Y-axis downward speed	mm/s	185	185	185	220	220	180	180	160	160	130	130
	Y-axis working speed	mm/s	19	19	19	17	17	14	14	12	12	9.5	9.5
	Y-axis return speed	mm/s	180	180	180	210	180	180	170	160	150	120	120
	X-axis travel speed	mm/s	400	400	400	400	400	400	400	400	400	400	400
	R-axis travel speed	mm/s	200	200	200	200	200	200	200	200	200	200	200
	Z-axis travel speed	mm/s	1200	1200	1200	1600	1600	1600	1600	1600	1600	1600	1600
Accuracy value	Y-axis repeatable positioning accuracy	mm	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01
	X-axis repeatable positioning accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
	R-axis repeatable positioning accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
	Z-axis positioning accuracy	mm	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1
	V-axis positioning accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
External dimension	Length	mm	2000	2600	3150	3720	4620	3780	4680	3830	4730	3830	4760
	Width	mm	1620	1620	1510	1720	1720	1730	1730	1800	1800	2100	2100
	Height	mm	2470	2470	2500	2550	2550	2600	2600	2670	2670	3250	3250

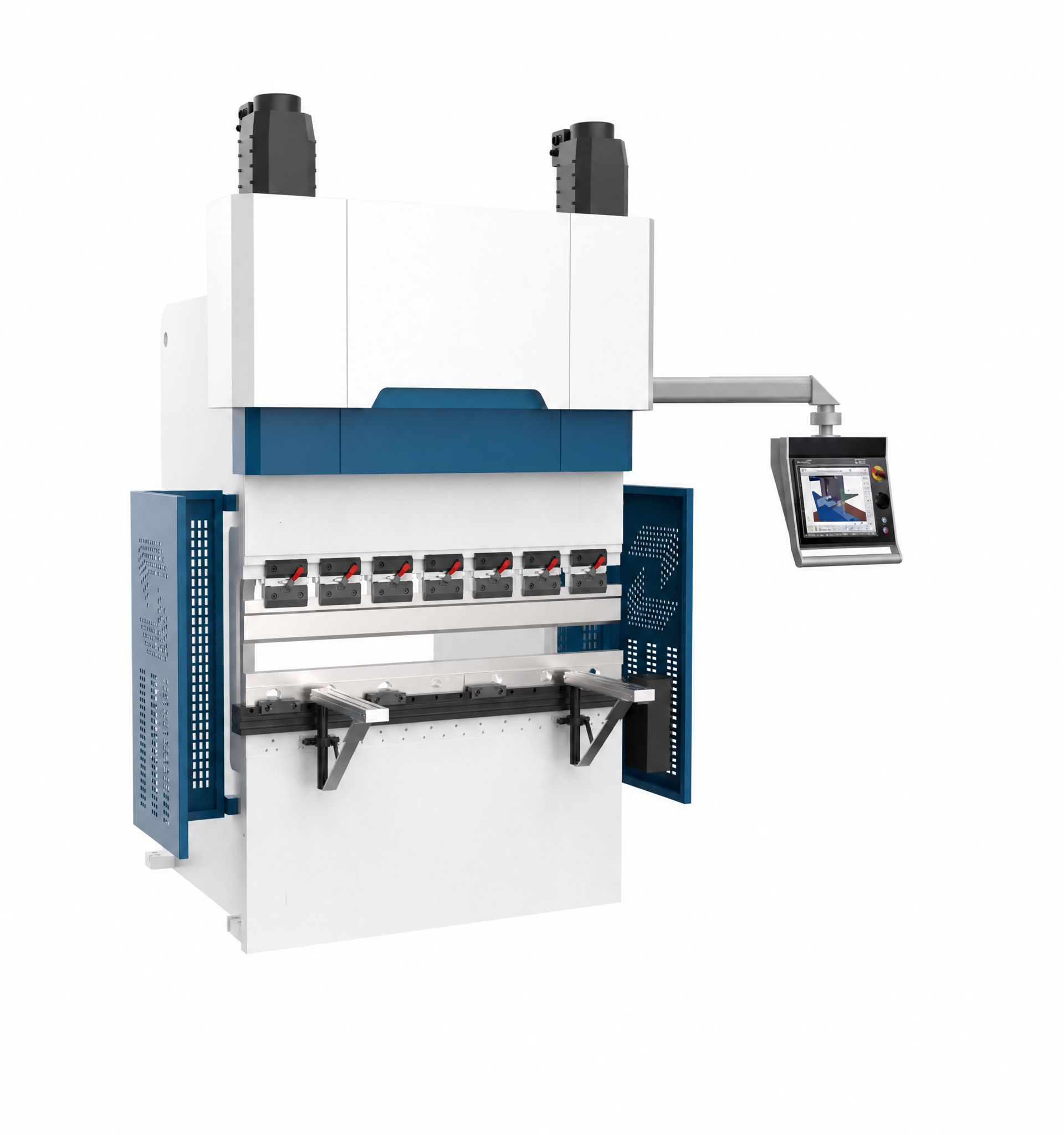

CNC Electric Servo Plate Bending Machine

		Unit	50T
			5015
		KN	500
		mm	1500
		mm	1200
		mm	520
		mm	300
		Kw	2*15
Stroke of each axis	Cylinder stroke	mm	165
	X-axis travel	mm	500
	R-axis travel	mm	200
	Z-axis travel	mm	350
Efficiency value	Y-axis downward speed	mm/s	160
	Y-axis working speed	mm/s	30
	Y-axis return speed	mm/s	160
	X-axis travel speed	mm/s	400
	R-axis travel speed	mm/s	200
	Z-axis travel speed	mm/s	1200
Accuracy value	Y-axis repeatable positioning accuracy	mm	±0.01
	X-axis repeatable positioning accuracy	mm	±0.02
	R-axis repeatable positioning accuracy	mm	±0.02
	Z-axis positioning accuracy	mm	±0.1
	V-axis positioning accuracy	mm	±0.02
External dimension	Length	mm	2200
	Width	mm	1650
	Height	mm	2900

Oil-electric Hybrid Plate Bending Machine:

Parameter		Unit	110T		170T		200T
Model		Unit	110/3200	110/4100	170/3200	170/4100	200/3200	200/4100
		KN	1100	1100	1700	1700	2000	2000
		mm	3200	4100	3200	4100	3200	4100
		mm	2700	3600	2700	3600	2700	3600
		mm	580	580	580	580	580	580
		mm	400	400	405	405	405	405
		Kw	2x7.5	2x7.5	2x7.5	2x7.5	2x9	2x9
		L	100	100	100	100	100	100
Stroke of each axis	Cylinder stroke	mm	200	200	200	200	200	200
	X-axis travel	mm	500	500	500	500	500	500
	R-axis travel	mm	200	200	200	200	200	200
	Z-axis travel	mm	1850	2700	1850	2700	1850	2700
Efficiency value	Y-axis downward speed	mm/s	250	250	220	220	200	200
	Y-axis working speed	mm/s	20	20	18	18	16	16
	Y-axis return speed	mm/s	230	200	200	190	180	170
	X-axis travel speed	mm/s	400	400	400	400	400	400
	R-axis travel speed	mm/s	200	200	200	200	200	200
	Z-axis travel speed	mm/s	1600	1600	1600	1600	1600	1600
Accuracy value	Y-axis repeatable positioning accuracy	mm	±0.01	±0.01	±0.01	±0.01	±0.01	±0.01
	X-axis repeatable positioning accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
	R-axis repeatable positioning accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
	Z-axis positioning accuracy	mm	±0.1	±0.1	±0.1	±0.1	±0.1	±0.1
	V-axis positioning accuracy	mm	±0.02	±0.02	±0.02	±0.02	±0.02	±0.02
External dimension	Length	mm	3720	4620	3780	4680	3830	4730
	Width	mm	1720	1720	1730	1730	1800	1800
	Height	mm	2550	2550	2600	2600	2670	2670
